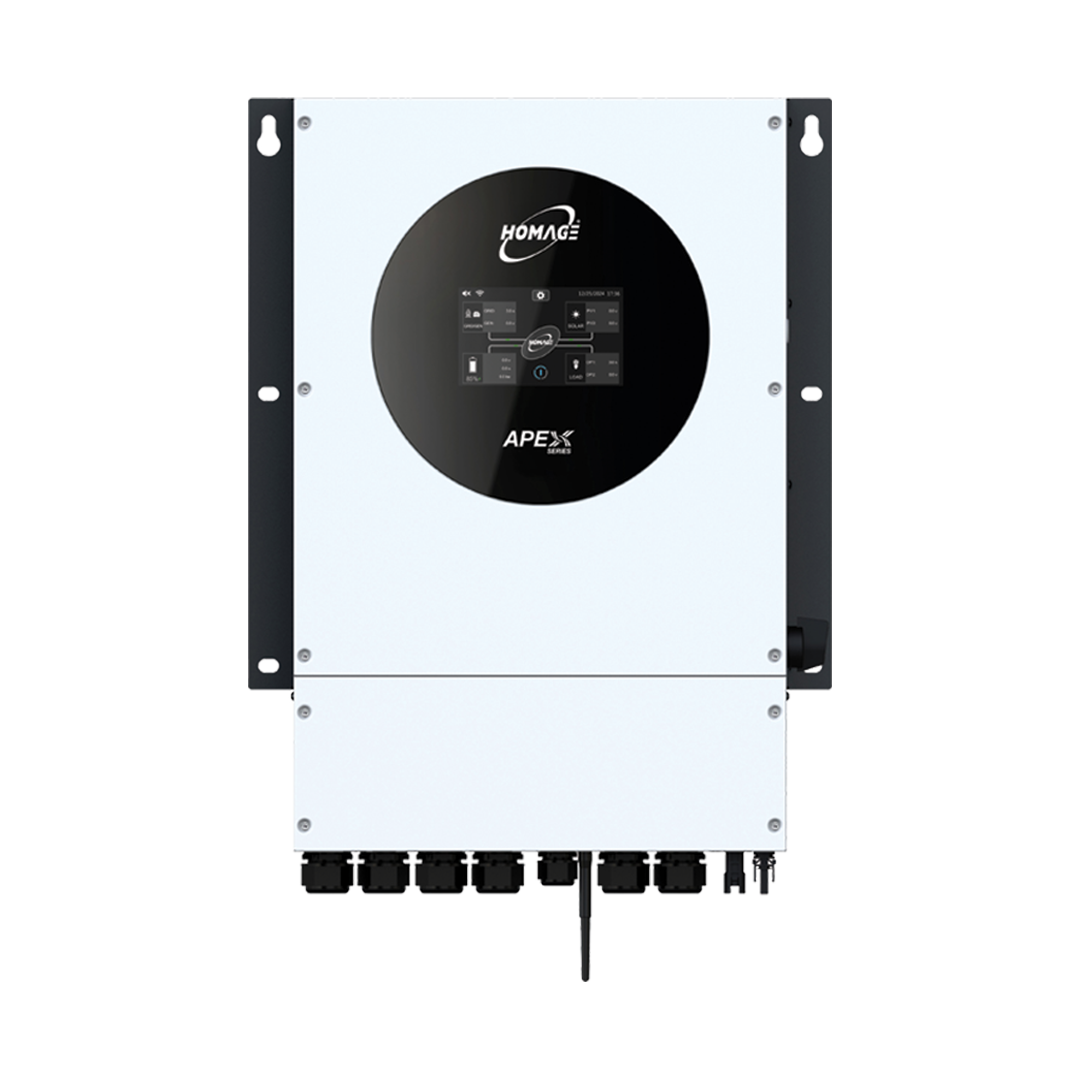

HAS-8020SCC IP66 (Hybrid)

HAS-8020SCC IP66 (Hybrid)

• 8000VA/8000Watt/48VDC/230VAC
• Pure sine wave
• Power factor range: 0.9 lead–0.9 lag
• Battery independent design
• Enhanced MPPT solar charger controller up to 13000 WATTS
• Maximum solar charge current 150A
• Battery equalization function to optimize battery performance and lifespan
• Compatible with lithium ion battery
• Reserved communication port for BMS
• Communication Interface USB/RS232/RS485/CAN/Dry contact
• User-friendly 7” HMI LCD
• Built-in Wi-Fi for mobile monitoring (App is available) and supports OTA firmware
• Programmable multiple operation modes: Grid-tie, off-grid and grid with backup
• PV, Grid and battery energies generation and consumption data available
• Two independent AC power sources connected and scheduled
• Dual output for smart load management
• Feeding power to grid
• Parallel operation up to 9 units
• Built-in 2 MPPT trackers
• Maximum PV input current 22 A x 2(Max. 40)
• External CT sensor to guarantee 100% self-consumption
