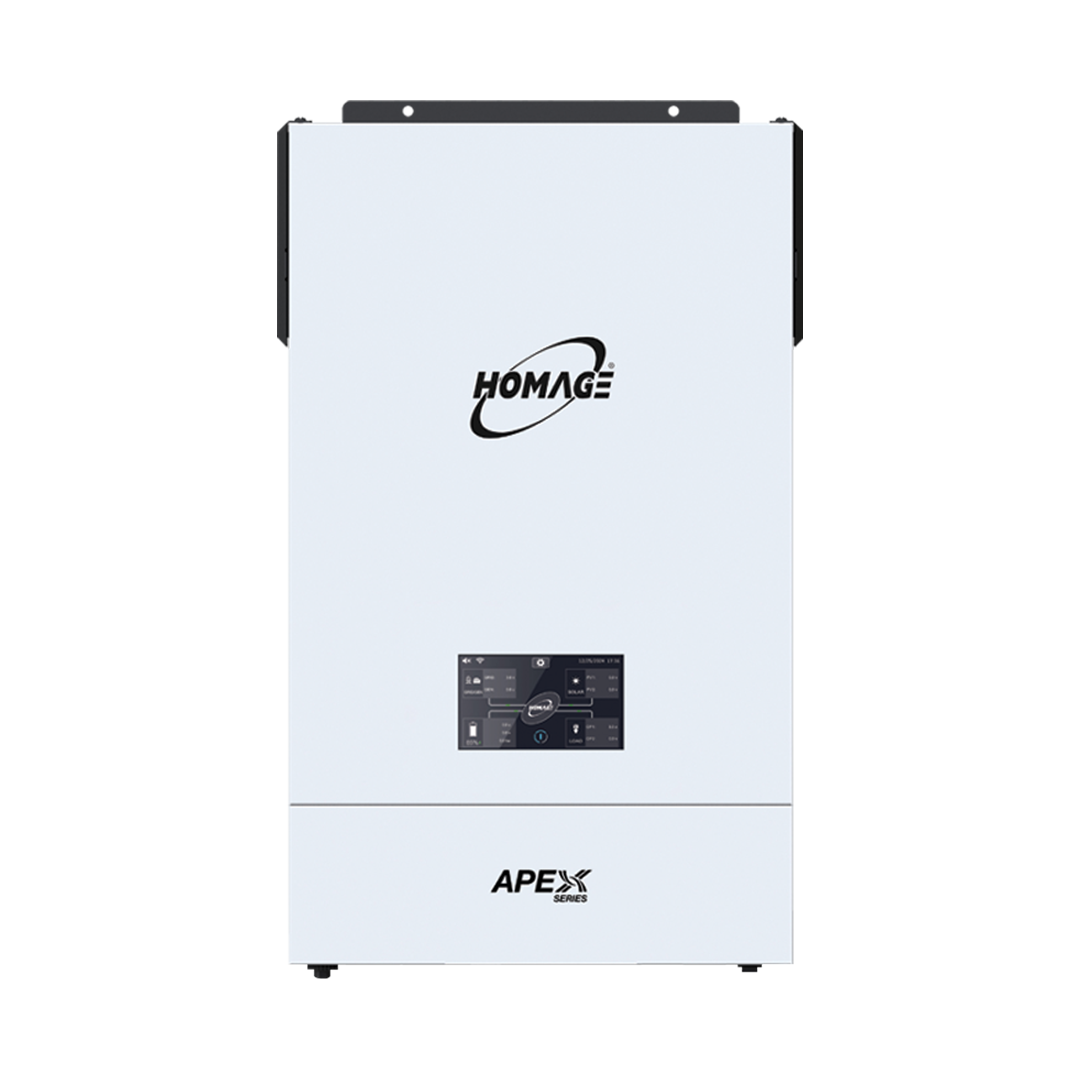

HAS-6019SCC V5 Hybrid

HAS-6019SCC V5 (Hybrid)

• 6000VA/6000Watt/48VDC/230VAC
• Pure sine wave
• Power factor range: 0.9 lead–0.9 lag
• Battery independent design
• Enhance MPPT solar charge controller up to 9000 WATTS
• Maximum solar charge current 120A
• Battery equalization function to optimize battery performance and extend lifecycle
• Compatible with lithium ion battery
• Reserved communication port for BMS
• Communication interface USB/RS232/RS485/CAN/Dry contact
• Built-in Wi-Fi for mobile monitoring (App is available)
• Support OTA firmware
• Programmable multiple operation modes: Grid-tie, Off-grid and grid-tie with backup
• PV, Grid and battery energies generation and consumption data available
• Dual output for smart load management
• Increased feed power to 7000W
• Feeding power into grid
• Parallel operation up to 9 units
• Built-in 2 MPP trackers
• Maximum PV input current 18A*2
• External CT sensor to guarantee 100% self-consumption
• Built-in anti-dust kit
