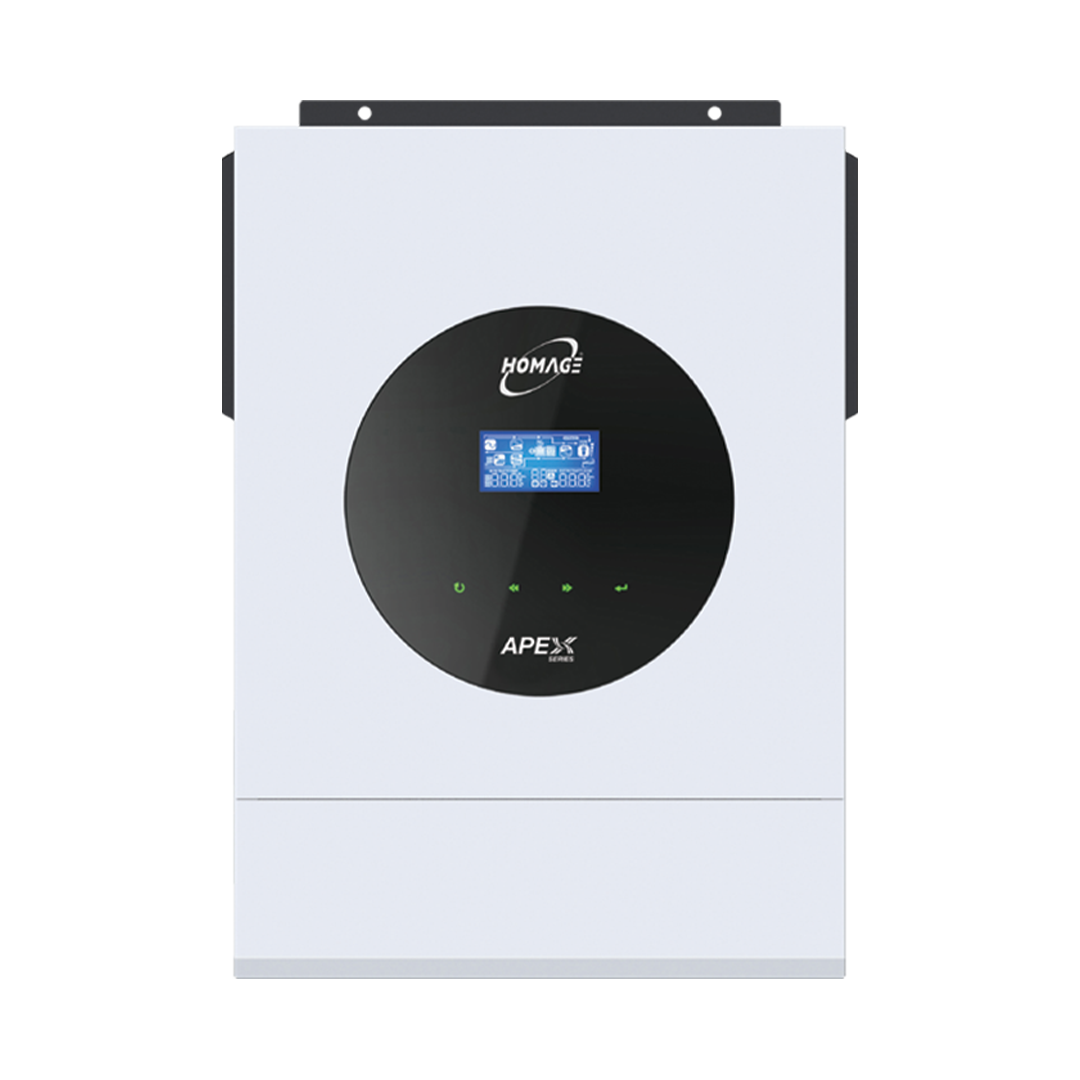

HAS-3218SCC (Hybrid)

HAS-3218SCC (Hybrid)

• 3200VA/3200Watt/24VDC/230VAC
• Pure sine wave
• Power factor range: 0.9 lead–0.9 lag
• Battery independent design
• Enhance MPPT solar charge controller up to 5000 WATTS
• Maximum solar charge current 120A
• Battery equalization function to optimize battery performance and extend lifecycle
• Compatible with lithium ion battery
• Reserved communication port for BMS
• Communication interface USB/RS232/RS485/CAN
• Touchable button with 2.5” graphic LCD
• Built-in Wi-Fi for mobile monitoring (App is available)
• Support OTA firmware
• PV, Grid and battery energies generation and consumption data available
• Feeding power into grid
• Maximum PV input current 18A
• Built-in anti-dust kit
